Thursday, 22 September 2011

Binding Images into Repeater control

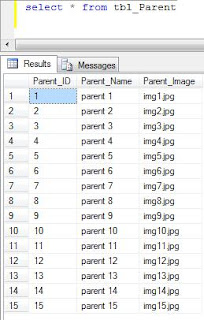

Initially database should like the following images



add the folders called imgs and parentimages and child images as shown in below



.aspx code:
<form id="form1" runat="server">
    <div>
    <div>
<table>
<tr>
    <asp:Repeater ID="rpParent" runat="server" onitemcommand="rpParent_ItemCommand" onitemdatabound="rpParent_ItemDataBound">
        <ItemTemplate>
            <td style="width:100px;">
                <asp:HiddenField ID="hfimg_P" runat="server" Value='<%#Eval("Parent_Image") %>' />
                <asp:ImageButton ID="imgbtn_P" runat="server" CommandName="ParentSelect" CommandArgument='<%#Eval("Parent_ID") %>'
                style="height:100px;width:150px;"/>
                <asp:LinkButton ID="lbtn_P" runat="server" Text='<%#Eval("Parent_Name") %>'></asp:LinkButton>
                <asp:Label ID="lbl_P" runat="server" Text='<%#Eval("Parent_ID") %>' Visible="false"></asp:Label>
            </td>
        </ItemTemplate>
    </asp:Repeater>
</tr>
<tr>
    <td colspan="4" align="right">
        <asp:LinkButton ID="lbtnBackword" runat="server" CommandName="bck" Text="Previous"
            CommandArgument="" onclick="lbtnBackword_Click"></asp:LinkButton> &nbsp;&nbsp;&nbsp;
        <asp:LinkButton ID="lbtnForward" runat="server" CommandName="fwd" Text="Next"
            CommandArgument="" onclick="lbtnForward_Click"></asp:LinkButton>
    </td>
</tr>
</table>
</div>
<br /><br />
<asp:Repeater ID="rpChild" runat="server" onitemcommand="rpChild_ItemCommand"
        onitemdatabound="rpChild_ItemDataBound">
    <ItemTemplate>
        <td style="width:100px;">
            <asp:ImageButton ID="imgbtn_C" runat="server" CommandName="ChildSelect" CommandArgument='<%#Eval("Child_ID") %>'
            style="height:100px;width:150px;"/>
            <asp:HiddenField ID="hfimage_C" runat="server" Value='<%#Eval("Child_Image") %>' />
            <asp:LinkButton ID="lbtn_C" runat="server" Text='<%#Eval("Child_Name") %>' ></asp:LinkButton>
            <asp:Label ID="lbl_C" runat="server" Text='<%#Eval("Child_ID") %>' Visible="false"></asp:Label>
        </td>
    </ItemTemplate>
</asp:Repeater>
<asp:Label ID="lblMsg" runat="server" Visible="false"></asp:Label>
</div>
</form>


.aspx.cs code

protected void Page_Load(object sender, EventArgs e)
{
    if (!IsPostBack)
        Fill_Repeater_P(0);
}
void Fill_Repeater_P(int t)
{
    SqlConnection SqlCon = new SqlConnection(@"Data Source=SQLEXPRESS;Initial Catalog=master;UID=sa;Pwd=sa");
    SqlCon.Open();
    SqlCommand SqlCmd = new SqlCommand("select top 4 Parent_ID,Parent_Name,Parent_Image from tbl_Parent where Parent_ID not in (select top (4*" + t + ") Parent_ID from tbl_Parent)", SqlCon);
    SqlDataAdapter da = new SqlDataAdapter(SqlCmd);
    DataSet ds = new DataSet();
    da.Fill(ds);
    rpParent.DataSource = ds;
    rpParent.DataBind();
    lbtnBackword.CommandArgument = (t - 1).ToString();
    lbtnForward.CommandArgument = (t + 1).ToString();
    if (t == 0)
        lbtnBackword.Visible = false;
    else
        lbtnBackword.Visible = true;
    if (ds.Tables[0].Rows.Count < 4)
        lbtnForward.Visible = false;
    else
        lbtnForward.Visible = true;
}
protected void lbtnBackword_Click(object sender, EventArgs e)
{
    Fill_Repeater_P(Convert.ToInt32(lbtnBackword.CommandArgument.ToString()));
}
protected void lbtnForward_Click(object sender, EventArgs e)
{
    Fill_Repeater_P(Convert.ToInt32(lbtnForward.CommandArgument.ToString()));
}
protected void rpParent_ItemCommand(object source, RepeaterCommandEventArgs e)
{
    if (e.CommandName == "ParentSelect")
    {
        lblMsg.Visible = false;
        fill_Repeater_C(Convert.ToInt32(e.CommandArgument.ToString()), 0);
    }
}
public void fill_Repeater_C(int pid, int t)
{
    SqlConnection SqlCon = new SqlConnection(@"Data Source=SQLEXPRESS;Initial Catalog=master;UID=sa;Pwd=sa");
    SqlCon.Open();
    SqlCommand SqlCmd = new SqlCommand("select top 4 Child_ID,Child_Name,Child_Image from tbl_Child where Parent_ID=" + pid +
        " and Child_ID not in (select top (4*" + t + ") Child_ID from tbl_Child where Parent_ID=" + pid + ")", SqlCon);
    SqlDataAdapter da = new SqlDataAdapter(SqlCmd);
    DataSet ds = new DataSet();
    da.Fill(ds);
    if (ds.Tables[0].Rows.Count > 0)
    {
        rpChild.DataSource = ds;
        rpChild.DataBind();
        lblMsg.Visible = false;
        rpChild.Visible = true;
    }
    else
    {
        lblMsg.Text = "This Parent does n't having childs";
        lblMsg.Visible = true;
        rpChild.Visible = false;
    }
}
protected void rpChild_ItemCommand(object source, RepeaterCommandEventArgs e)
{

}
protected void rpParent_ItemDataBound(object sender, RepeaterItemEventArgs e)
{
    if (e.Item.ItemType == ListItemType.Item || e.Item.ItemType == ListItemType.AlternatingItem)
    {
        HiddenField hfimg_P = (HiddenField)e.Item.FindControl("hfimg_P");
        ImageButton imgbtn_P = (ImageButton)e.Item.FindControl("imgbtn_P");
        imgbtn_P.ImageUrl = "~/imgs/parentimages/" + hfimg_P.Value;
    }
}
protected void rpChild_ItemDataBound(object sender, RepeaterItemEventArgs e)
{
    if (e.Item.ItemType == ListItemType.Item || e.Item.ItemType == ListItemType.AlternatingItem)
    {
        HiddenField hfimg_C = (HiddenField)e.Item.FindControl("hfimage_C");
        ImageButton imgbtn_C = (ImageButton)e.Item.FindControl("imgbtn_C");
        imgbtn_C.ImageUrl = "~/imgs/childimages/" + hfimg_C.Value;
    }
}



hence the output will be
